Side-by-Side Treadmill
Force Plate-Instrumented Treadmill

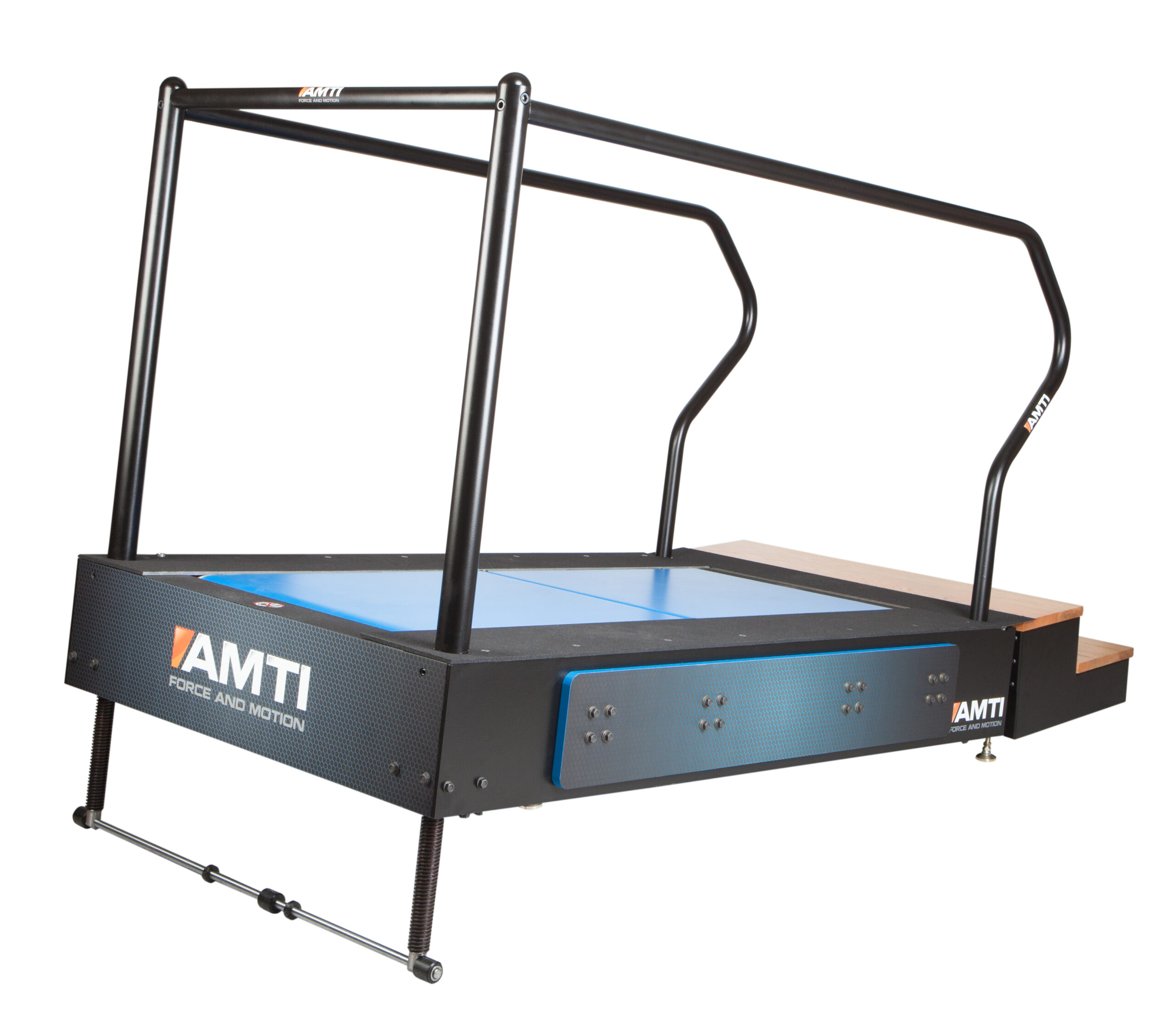

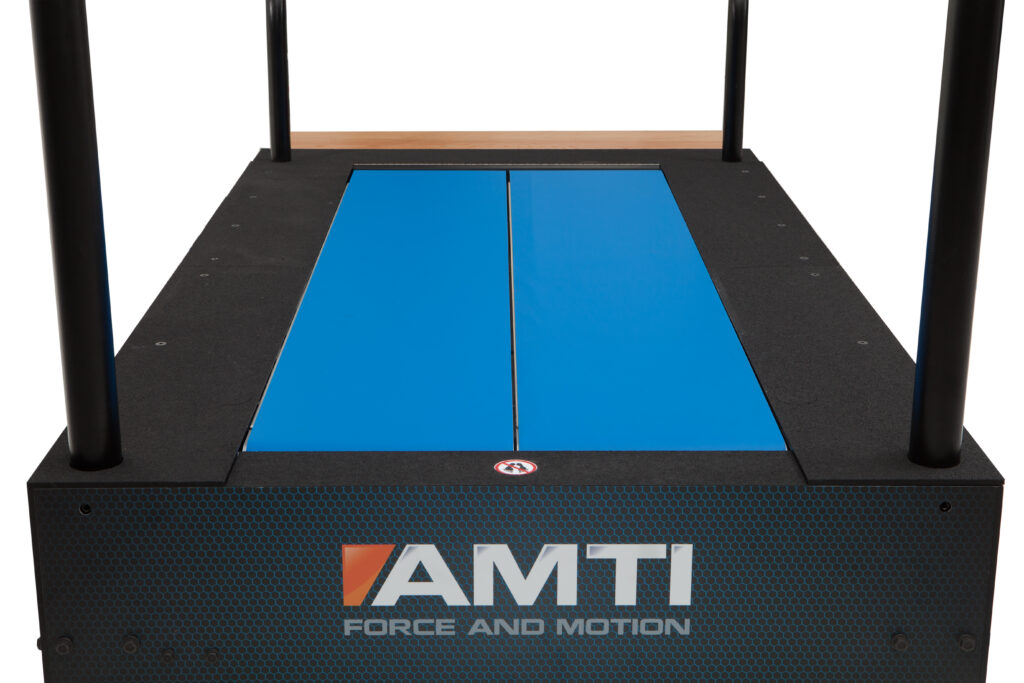

AMTI’s classic Side-by-Side split-belt force-sensing treadmill features two belts separated longitudinally by a 7 mm gap. Each belt is 12.5 inches wide and can be run at a speed that is independent of the other. This configuration is ideal for certain pathological gait studies and treatment protocols, such as in stroke rehabilitation.
Key Features:
- Inclination up to 25% grade
- Reversible belts for uphill and downhill testing
- Two independent, 6-axis force platforms with 8900 N vertical capacity
- Adjustable speed up to 20 km/hr
- Ships fully-assembled with all software pre-loaded on an AMTI-supplied PC
- Simple digital USB integration with all leading motion capture software
A six-axis AMTI force plate is located under each belt to record the ground reaction forces (Fx, Fy, Fz) and moments (Mx, My, Mz) generated by the subject. The force plates are an integral part of the treadmill design and each force plate entirely supports its own treadmill/drive motor assembly. High performance digital motor controllers and included software provide users with an intuitive interface for control of treadmill inclination, belt travel direction, and belt speed up to 20 km/h. The extensive capabilities of the tandem treadmill make it an ideal method for studying both walking and running under level, uphill, and downhill conditions.
Collect multiple footfalls in a fraction of the time
Explore AMTI’s innovative front-to-back (tandem) split belt treadmill design.
Tandem TreadmillTreadmill Installation Options
Above Ground
- Sits on top of the floor

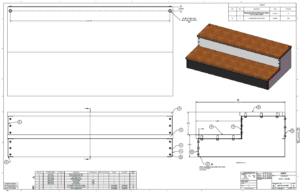

- Ships with stairs for easy access
- Caster wheels to move in/out of capture volume
(if need be)
In-Floor (Pit)
- Installs within recessed concrete pit or raised access floor
- Surface/belts flush with surrounding floor
- Ships with mounting rails

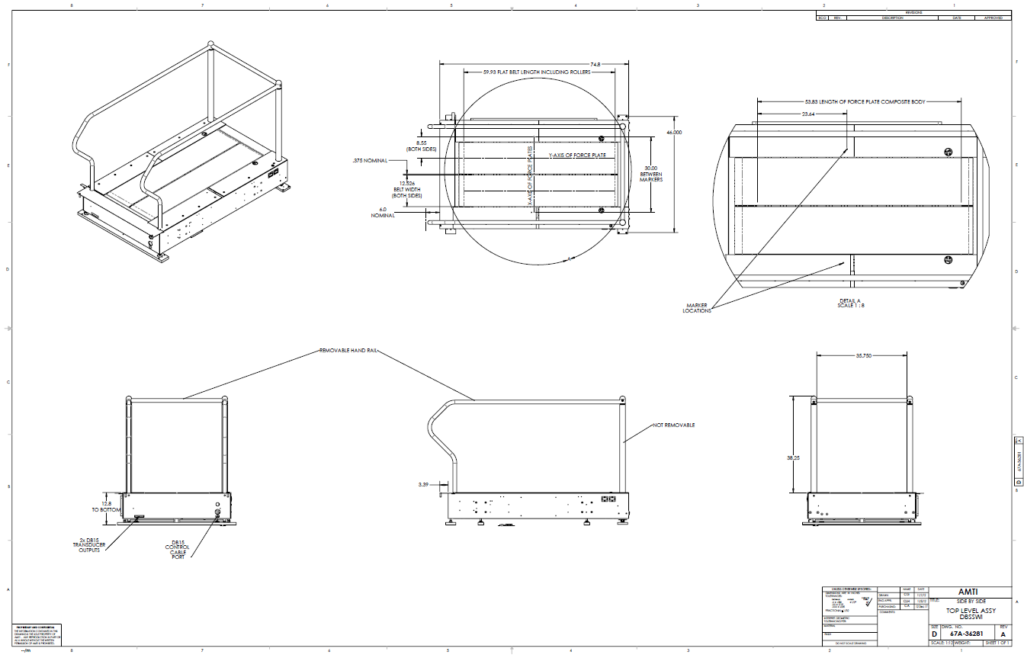

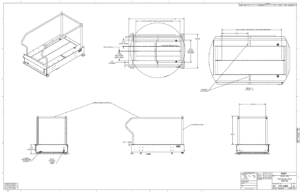

Specifications & Details
Review detailed treadmill specifications below.
