MC8

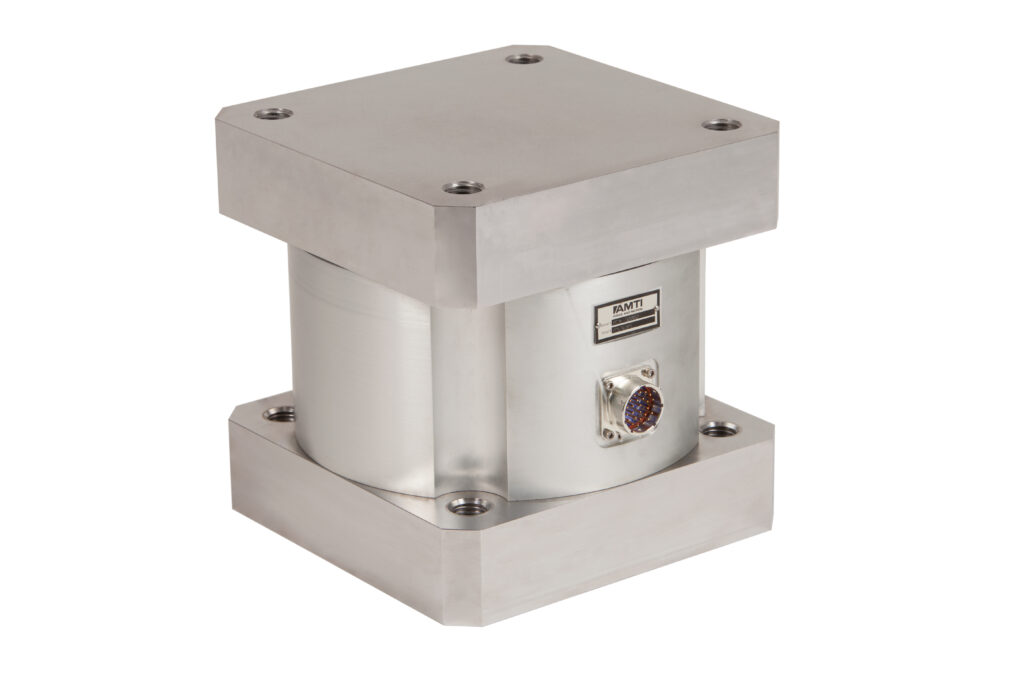

The MC8 has the highest load capacity of all the multicomponent single element type transducers at AMTI. This sensor provides six outputs with vertical capacities available in 10,000 lb, 20,000 lb, and 30,000 lb models (see Specifications Tables). The individual sensing element within the transducer features high stiffness, high sensitivity, and excellent repeatability and longevity.

Request a Quote

The body of the MC8 is manufactured from an anodized aluminum shell which is secured between high strength 17-4 stainless steel plates on the top and bottom surfaces. The working surface of this instrument is 8 inches square, and the top and bottom plates are each equipped with 4 threaded holes for mounting. Conformal coating of the strain gages further ensures consistent and reliable performance.

See the Specifications Tables below for more details.

Complete your system with our state-of-the-art Gen-5 amplifier

AMTI's Gen-5 signal conditioner (amplifier) features advanced functionality and built-in digitization to provide you with a powerful and flexible system. Connect to your PC and start collecting data straight out of the box.

Learn More

System Information

AMTI's industrial sensors can be paired with optional components to create a complete system.

GEN-5 Amplifier

Advanced signal conditioner
Pairs with multi-axis sensors or legacy plates
USB 2.0 digital or analog outputs

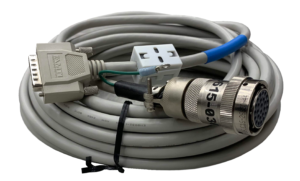

Transducer Cable

30 ft. standard length
Connects amplifier to force sensor
Data transfer and power supply

NetForce

Basic data acquisition software
Compatible with AMTI force plates & sensors
Export to .bsf or text file for post-processing

Specifications & Details

Review detailed force transducer specifications and model versions below.

General Specifications

Dimensions 20.3 x 20.3 x 20.3 cm
Weight 36 kg
Temperature Range -18°C to 50°C
Channels Fx, Fy, Fz, Mx, My, Mz
Body Material Anodized aluminum shell (body); High strength 17-4 stainless steel top & bottom plates
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis <1% full scale output
IP Rating IP60
Analog outputs 6 channels
Digital outputs USB, with GEN-5
Sensing Elements Strain gage bridge
Amplifier GEN-5 available for purchase
Crosstalk* < 2% on all channels
Fx, Fy, Fz non-linearity ±0.2% full scale ouptut
Available Capacities (Fz, lb) 10k, 20k, 30k

Dimensions 8 x 8 x 8 in.
Weight 80 lb
Temperature Range 0°F to 125°F
Channels Fx, Fy, Fz, Mx, My, Mz
Body Material Anodized aluminum shell (body); High strength 17-4 stainless steel top & bottom plates
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis <1% full scale output
IP Rating IP60
Analog outputs 6 channels
Digital outputs USB, with GEN-5
Sensing Elements Strain gage bridge
Amplifier GEN-5 available for purchase
Crosstalk* < 2% on all channels
Fx, Fy, Fz non-linearity ±0.2% full scale ouptut
Available Capacities (Fz, lb) 10k, 20k, 30k

Capacities, Sensitivities & Frequencies

The table below provides a comparison of the available capacity models for this force sensor

Model Name Suffix (Fz, lbs)	10000	20000	30000
Fx, Fy Capacity (N)	22250	44500	66750
Fz Capacity (N)	44500	89000	133500
Mx, My Capacity (Nm)	4520	9040	13560
Mz Capacity (Nm)	2260	4520	6780
Fx, Fy Sensitivity (µV/V-N)	0.15	0.074	0.049
Fz Sensitivity (µV/V-N)	0.031	0.016	0.010
Mx, My Sensitivity (µV/V-Nm)	1.2	0.62	0.41
Mz Sensitivity (µV/V-Nm)	1.2	0.62	0.41
Lowest Natural Frequency* (Hz)	800	1100	1300

Model Name Suffix (Fz, lbs)	10000	20000	30000
Fx, Fy Capacity (lb)	5000	10000	15000
Fz Capacity (lb)	10000	20000	30000
Mx, My Capacity (in-lb)	40000	80000	120000
Mz Capacity (in-lb)	20000	40000	60000
Fx, Fy Sensitivity (µV/V-lb)	0.66	0.33	0.22
Fz Sensitivity (µV/V-lb)	0.14	0.07	0.046
Mx, My Sensitivity (µV/V-in-lb)	0.14	0.07	0.046
Mz Sensitivity (µV/V-Nm)	0.14	0.07	0.046
Lowest Natural Frequency* (Hz)	800	1100	1300

*The listed natural frequency is the lowest natural frequency for the force sensor and will dominate.

Technical Drawings

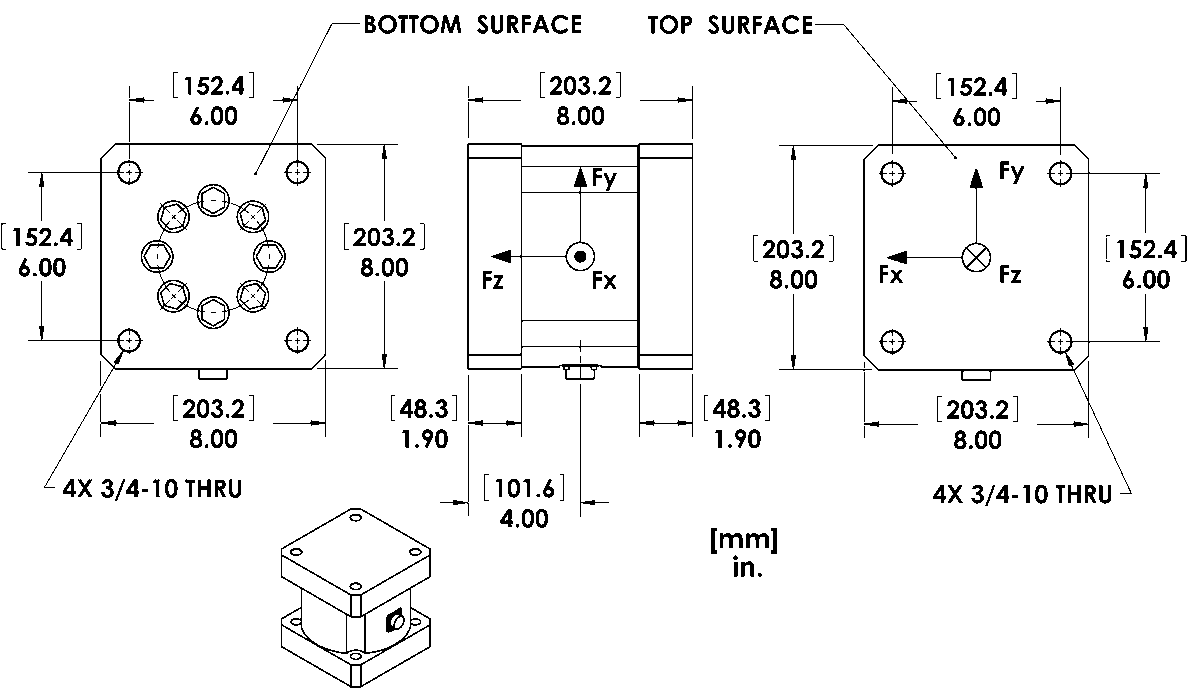

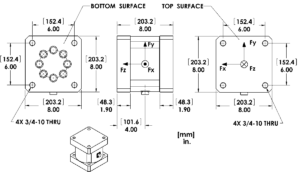

MC8 Outline Drawing
