HPS464508

OPTIMA^TM-High Performance Series (HPS)
Previous MN: OPT464508

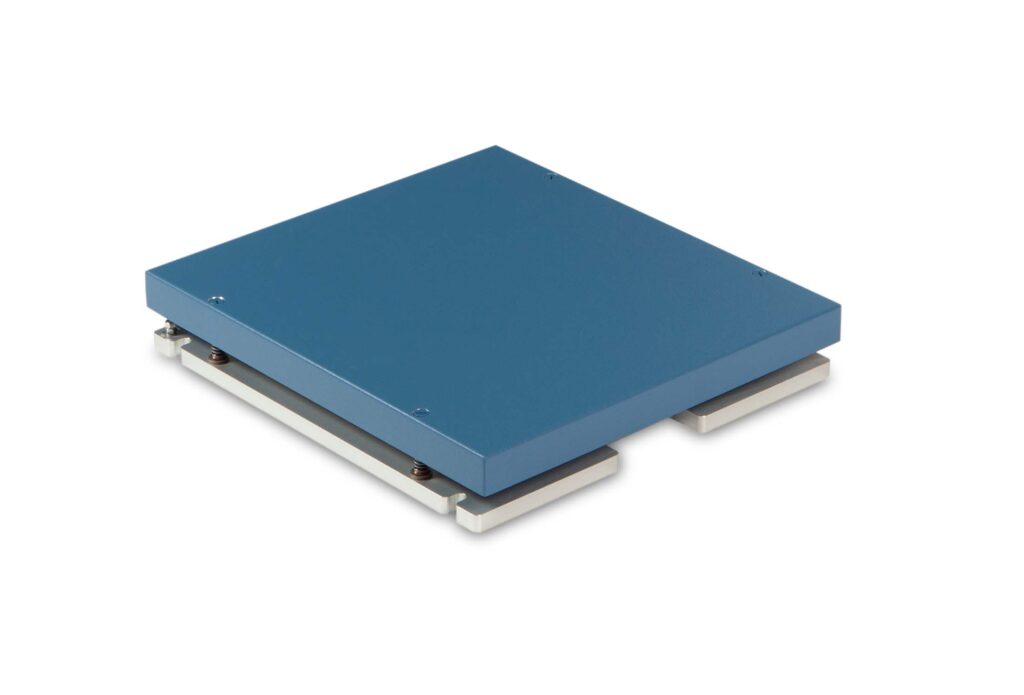

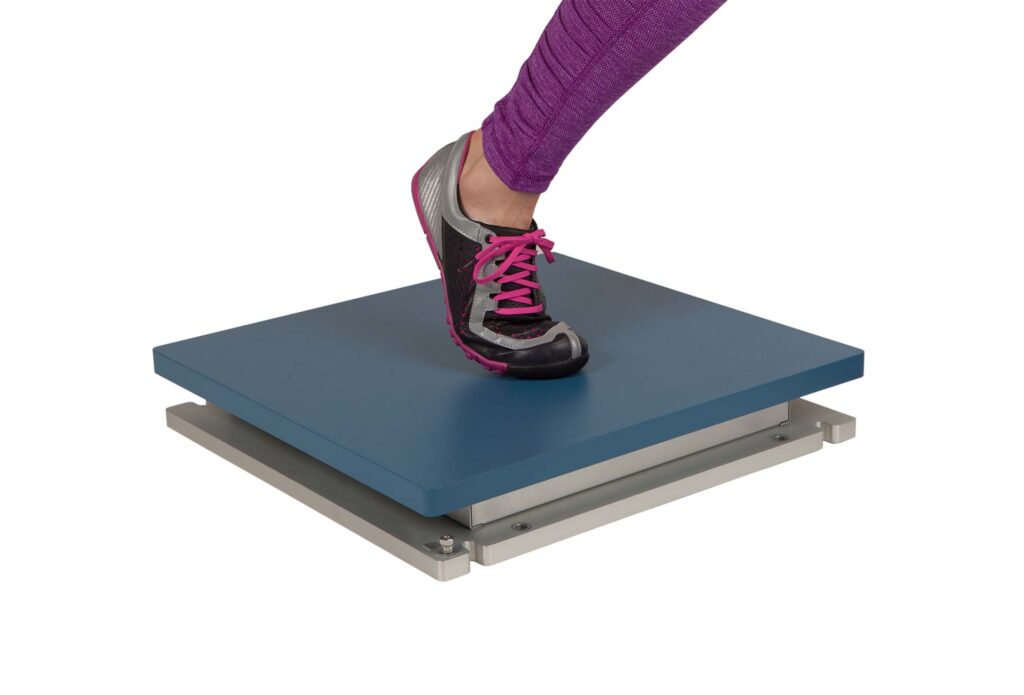

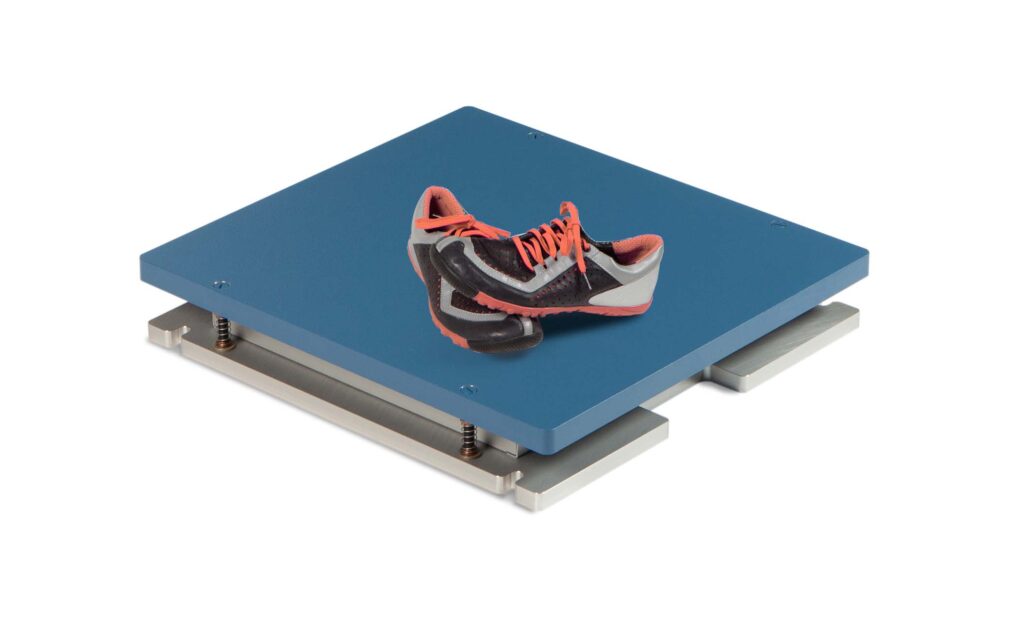

The HPS464508 is part of AMTI’s High Performance Series (HPS), the most advanced, most accurate force platform system available. This 46×51 cm platform is an industry “standard size” for adult and pediatric gait studies and is used in hundreds of labs around the world. Popularized for gait analysis, this multi-axis mounted force platform can be used for most anything from adult or adolescent human balance testing, to canine gait applications.

Request a Quote

High sensitivity, low crosstalk, excellent repeatability and long-term stability make this platform an ideal candidate for research and clinical studies. For more flexibility with your installation, ask about AMTI’s Modular Rail System.

Standard or High Frequency

The HPS464508 is available in either a Standard Frequency or High Frequency model. High Frequency models can be beneficial for highly dynamic applications or scenarios with increased environmental vibrations.

See the Specifications Tables below for more details.

Built with advanced OPTIMA technology

AMTI’s Optima calibration technology is a revolutionary development in force measurement technology, offering a 10-fold improvement over any force platform system on the market.

Learn More

Measure Better: Trade in your existing AMTI or other force platform for Optima.

Contact AMTI for Details

System Information

All of AMTI's Optima series force platform systems ship standard with the force plate, an Optima amplifier, a 30-foot force plate-to-amplifier cable, and the necessary mounting equipment.

OPT-SC (Optima) Amplifier

Top-of-the-line signal conditioner
Pairs exclusively with Optima force plates
USB 2.0 digital or analog outputs

Force Plate Cable

30 ft. standard length
Connects amplifier to force plate
Data transfer and power supply

Mounting Kit

1 pair of mounting rails
Epoxy and dispenser
Installation fixtures and instructions

Specifications & Details

Review detailed force plate specifications and model versions below.

General Specifications

Dimensions 464 x 508 x 82.5 mm
Temperature Range -18°C to 50°C
Channels Fx, Fy, Fz, Mx, My, Mz
Excitation 10 V maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
COP Accuracy* Less than 0.2 mm*
Mounting Hardware Recommended
Sensing Elements Strain gage bridge
Amplifier Included (OPT-SC)
Outputs Digital (USB) or Analog
Crosstalk* ±0.05% of applied load*
Measurement Accuracy* ±0.1% of applied load*

Dimensions 18.25 x 20 x 3.25 in.
Temperature Range 0°F to 125°F
Channels Fx, Fy, Fz, Mx, My, Mz
Excitation 10 V maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
COP Accuracy* Less than 0.008 in.*
Mounting Hardware Recommended
Sensing Elements Strain gage bridge
Amplifier Included (OPT-SC)
Outputs Digital (USB) or Analog
Crosstalk* ±0.05% of applied load*
Measurement Accuracy* ±0.1% of applied load*

*Typical Value: Minimum applied load of 50 lb

Capacities and Sensitivities

The table below provides a comparison of the available capcity models for this force plate

Model Name Suffix (Fz, lb)	1000	2000
Fx, Fy Capacity (N)	2225	4450
Fz Capacity (N)	4450	8900
Mx Capacity (Nm)	1130	2260
My Capacity (Nm)	1130	2260
Mz Capacity (Nm)	570	1130
Fx, Fy Sensitivity (µV/V-N)	0.67	0.34
Fz Sensitivity (µV/V-N)	0.17	0.08
Mx Sensitivity (µV/V-Nm)	1.59	0.80
My Sensitivity (µV/V-Nm)	1.59	0.80
Mz Sensitivity (µV/V-Nm)	3.36	1.68

Model Name Suffix (Fz, lb)	1000	2000
Fx, Fy Capacity (lb)	500	1000
Fz Capacity (lb)	1000	2000
Mx Capacity (in-lb)	10000	20000
My Capacity (in-lb)	10000	20000
Mz Capacity (in-lb)	5000	10000
Fx, Fy Sensitivity (µV/V-lb)	3	1.5
Fz Sensitivity (µV/V-lb)	0.75	0.38
Mx Sensitivity (µV/V-in-lb)	0.18	0.090
My Sensitivity (µV/V-in-lb)	0.18	0.09
Mz Sensitivity (µV/V-in-lb)	0.38	0.19

Frequency Models

This force plate is available in a standard and High Frequency (HF) model.

Model Name Suffix (Fz, lb)	1000		2000
Frequency Version	Standard	High (HF)	Standard	High (HF)
Fx, Fy Natural Frequency (Hz)	280	400	360	550
Fz Natural Frequency (Hz)	460	1000	500	1000
Top Plate Material	Solid Aluminum	Composite	Solid Aluminum	Composite
Weight (kg)	28	18	28	18

Model Name Suffix (Fz, lb)	1000		2000
Frequency Version	Standard	High (HF)	Standard	High (HF)
Fx, Fy Natural Frequency (Hz)	280	400	360	550
Fz Natural Frequency (Hz)	460	1000	500	1000
Top Plate Material	Solid Aluminum	Composite	Solid Aluminum	Composite
Weight (lb)	62	40	62	40

Specifications subject to change without notice.

Technical Drawings

HPS464508 Platform on Rails
