Large Force Plate | Sports Performance Measurement

BMS600900

OPTIMA^TM-Biomechanics Measurement Series (BMS)
Previous MN: BP600900

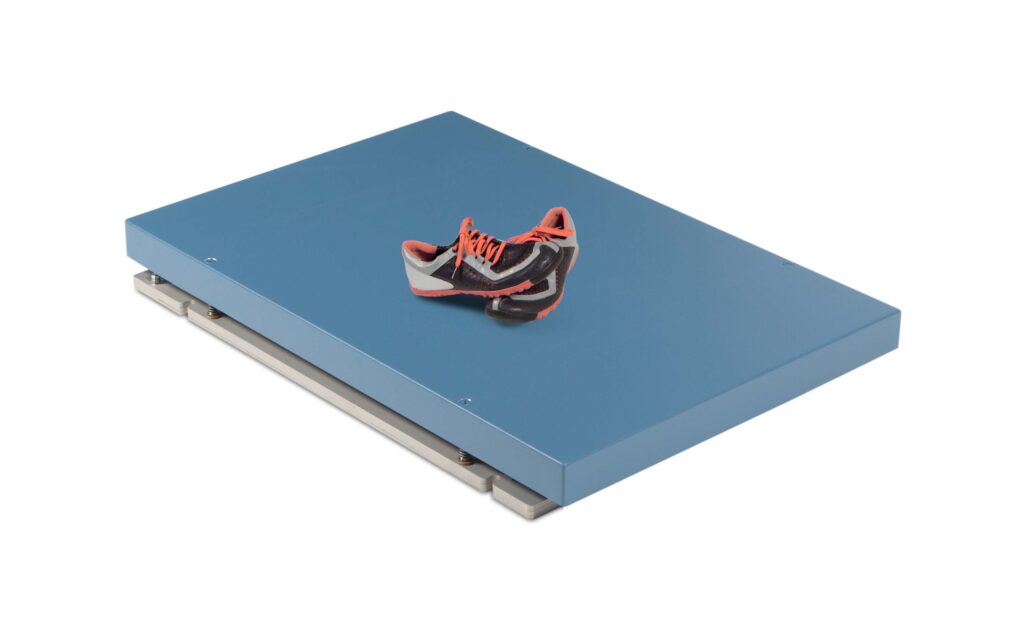

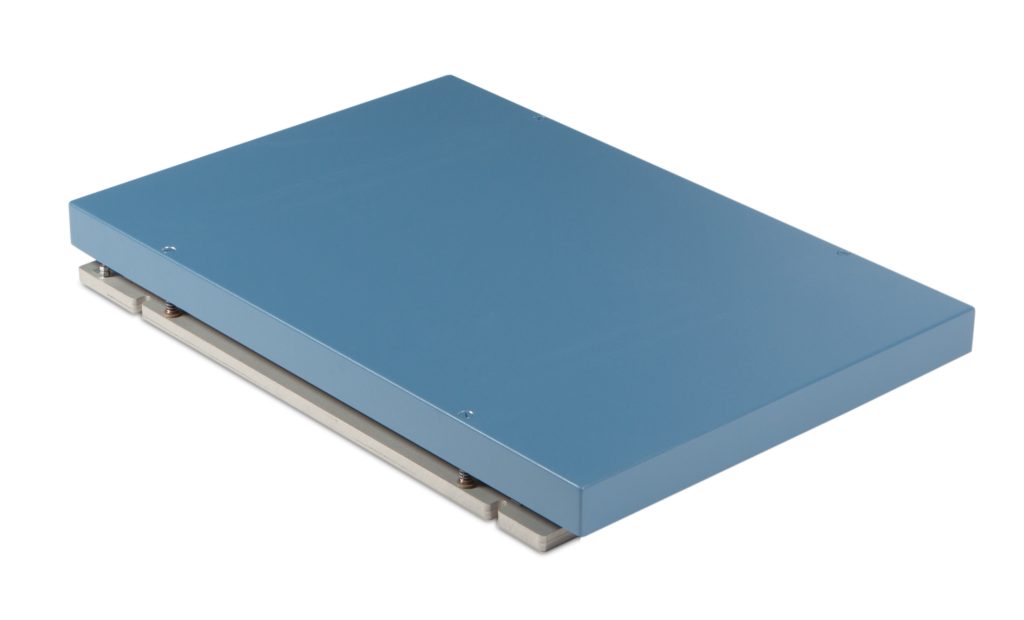

The BMS600900 features a large target area, perfect for sport performance analysis and testing. Ideal for a variety of athletic assessments, this mounted force platform has been installed in running tracks, basketball courts, weightlifting racks and more. One of the most common applications is a dual-plate side-by-side setup for jump and drop landing analysis.

Request a Quote

Product Sheet

The composite top material provides a high frequency response, ideal for highly dynamic applications. AMTI’s patented Optima Technology also makes the BMS600900 extremely accurate with excellent repeatability over the entire surface of the force platform.

For more flexibility with your installation, ask about AMTI’s Modular Rail System.

See the Specifications Tables below for more details.

Built with advanced OPTIMA technology

AMTI’s Optima calibration technology is a revolutionary development in force measurement technology, offering a 10-fold improvement over any force platform system on the market.

Learn More

System Information

All of AMTI's Optima series force platform systems ship standard with the force plate, an Optima amplifier, a 30-foot force plate-to-amplifier cable, and the necessary mounting equipment.

OPT-SC (Optima) Amplifier

Top-of-the-line signal conditioner
Pairs exclusively with Optima force plates
USB 2.0 digital or analog outputs

Force Plate Cable

30 ft. standard length
Connects amplifier to force plate
Data transfer and power supply

Mounting Kit

1 pair of mounting rails
Epoxy and dispenser
Installation fixtures and instructions

Specifications & Details

Review detailed force plate specifications and model versions below.

General Specifications

Dimensions 600 x 900 x 101.6 mm
Weight 32 kg
Temperature Range -18°C to 50°C
Channels Fx, Fy, Fz, Mx, My, Mz
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis Less than 0.5% full scale output
COP Accuracy* Less than 0.5 mm*
Mounting Hardware Recommended
Sensing Elements Strain gage bridge
Amplifier Included (OPT-SC)
Outputs Digital (USB) or Analog
Crosstalk* ±0.2% of applied load*
Measurement Accuracy* ±0.5% of applied load*
Top Plate Material Composite

Dimensions 23.6 x 35.4 x 4 in
Weight 70 lb
Temperature Range 0°F to 125°F
Channels Fx, Fy, Fz, Mx, My, Mz
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis Less than 0.5% full scale output
COP Accuracy* Less than 0.02 in.*
Mounting Hardware Recommended
Sensing Elements Strain gage bridge
Amplifier Included (OPT-SC)
Outputs Digital (USB) or Analog
Crosstalk* ±0.2% of applied load*
Measurement Accuracy* ±0.5% of applied load*
Top Plate Material Composite

*Typical Value: Minimum applied load of 50 lb.

Capacities, Sensitivities & Frequencies

The table below provides a comparison of the available models for this force plate

Model Name Suffix (Fz, lb)	1000	2000	4000
Fx, Fy Capacity (N)	2225	4450	8900
Fz Capacity (N)	4450	8900	17800
Mx Capacity (Nm)	2030	4070	8140
My Capacity (Nm)	1400	2700	5400
Mz Capacity (Nm)	1000	2000	4100
Fx, Fy Sensitivity (µV/V-N)	0.67	0.34	0.17
Fz Sensitivity (µV/V-N)	0.17	0.08	0.04
Mx Sensitivity (µV/V-Nm)	0.93	0.47	0.23
My Sensitivity (µV/V-Nm)	1.03	0.51	0.26
Mz Sensitivity (µV/V-Nm)	2.06	1.04	0.52
Fx, Fy Natural Frequency (Hz)	340	400	480
Fz Natural Frequency (Hz)	430	430	440

Model Name Suffix (Fz, lb)	1000	2000	4000
Fx, Fy Capacity (lb)	500	1000	2000
Fz Capacity (lb)	1000	2000	4000
Mx Capacity (in-lb)	18000	36000	72000
My Capacity (in-lb)	12000	24000	48000
Mz Capacity (in-lb)	9000	18000	36000
Fx, Fy Sensitivity (µV/V-lb)	3	1.5	0.75
Fz Sensitivity (µV/V-lb)	0.75	0.38	0.19
Mx Sensitivity (µV/V-in-lb)	0.11	0.05	0.026
My Sensitivity (µV/V-in-lb)	0.12	0.06	0.03
Mz Sensitivity (µV/V-in-lb)	0.23	0.12	0.058
Fx, Fy Natural Frequency (Hz)	340	400	480
Fz Natural Frequency (Hz)	430	430	440

Specifications subject to change without notice.

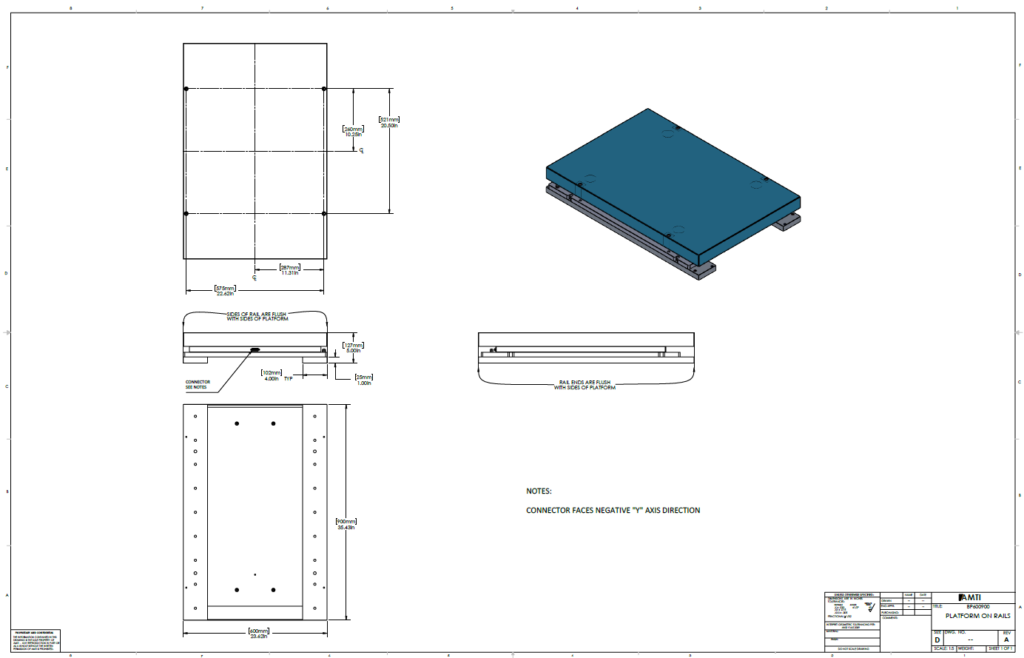

Technical Drawings

BMS600900 Platform on Rails
