BMS6001200

OPTIMA^TM-Biomechanics Measurement Series (BMS)
Previous MN: BP6001200

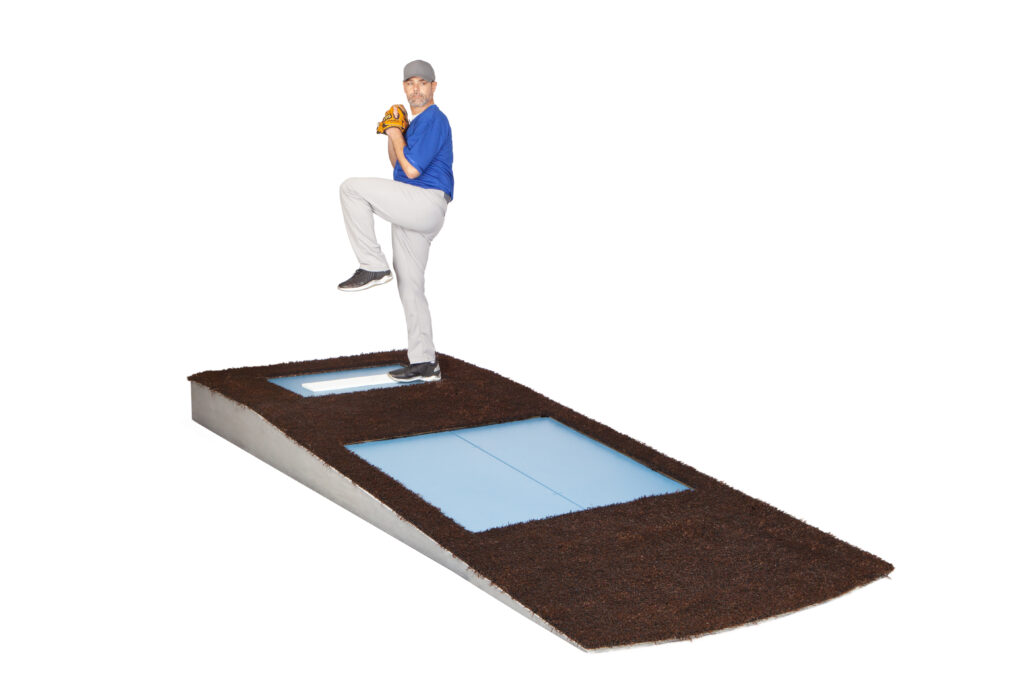

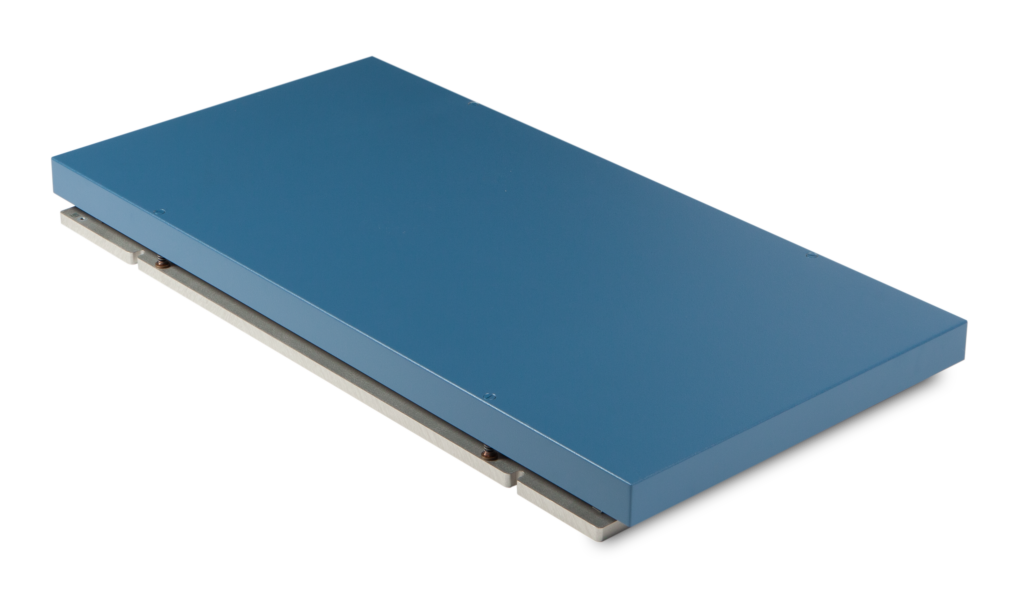

The BMS6001200 features a long target area, perfect for sport performance analysis and testing. Ideal for athletic activities spanning a longer working area, this mounted force platform has been installed in Instrumented Pitching Mounds, running tracks, long jump pits and more.

Request a Quote

AMTI’s patented Optima Technology makes the BMS6001200 extremely accurate with excellent repeatability over the entire surface of the force platform. For more flexibility with your installation, ask about AMTI’s Modular Rail System.

See the Specifications Tables below for more details.

Built with advanced OPTIMA technology

AMTI’s Optima calibration technology is a revolutionary development in force measurement technology, offering a 10-fold improvement over any force platform system on the market.

Learn More

System Information

All of AMTI's Optima series force platform systems ship standard with the force plate, an Optima amplifier, a 30-foot force plate-to-amplifier cable, and the necessary mounting equipment.

OPT-SC (Optima) Amplifier

Top-of-the-line signal conditioner
Pairs exclusively with Optima force plates
USB 2.0 digital or analog outputs

Force Plate Cable

30 ft. standard length
Connects amplifier to force plate
Data transfer and power supply

Mounting Kit

1 pair of mounting rails
Epoxy and dispenser
Installation fixtures and instructions

Specifications & Details

Review detailed force plate specifications and model versions below.

General Specifications

Dimensions 600 x 1200 x 101.6 mm
Weight 39 kg
Temperature Range -18°C to 50°C
Channels Fx, Fy, Fz, Mx, My, Mz
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
COP Accuracy* Less than 0.5 mm*
Mounting Hardware Recommended
Sensing Elements Strain gage bridge
Amplifier Included (OPT-SC)
Outputs Digital (USB) or Analog
Crosstalk* ±0.2% of applied load*
Measurement Accuracy* ±0.5% of applied load*
Top Plate Material Composite

Dimensions 23.6 x 47.2 x 4 in
Weight 85 lb
Temperature Range 0°F to 125°F
Channels Fx, Fy, Fz, Mx, My, Mz
Excitation 10V Maximum
Fx, Fy, Fz Hysteresis ±0.2% full scale output
COP Accuracy* Less than 0.02 in.*
Mounting Hardware Recommended
Sensing Elements Strain gage bridge
Amplifier Included (OPT-SC)
Outputs Digital (USB) or Analog
Crosstalk* ±0.2% of applied load*
Measurement Accuracy* ±0.5% of applied load*
Top Plate Material Composite

*Typical Value: Minimum applied load of 50 lb

Capacities, Sensitivities & Frequencies

The table below provides a comparison of the available models for this force plate

Model Name Suffix (Fz, lb)	1000	2000	4000
Fx, Fy Capacity (N)	2225	4450	8900
Fz Capacity (N)	4450	8900	17800
Mx Capacity (Nm)	2710	5420	10850
My Capacity (Nm)	1360	2710	5420
Mz Capacity (Nm)	1020	2030	4070
Fx, Fy Sensitivity (µV/V-N)	0.67	0.34	0.17
Fz Sensitivity (µV/V-N)	0.17	0.08	0.04
Mx Sensitivity (µV/V-Nm)	0.78	0.75	0.19
My Sensitivity (µV/V-Nm)	1.15	0.58	0.29
Mz Sensitivity (µV/V-Nm)	1.66	0.83	0.42
Fx, Fy Natural Frequency (Hz)	280	390	--
Fz Natural Frequency (Hz)	390	410	--

Model Name Suffix (Fz, lb)	1000	2000	4000
Fx, Fy Capacity (lb)	500	1000	2000
Fz Capacity (lb)	1000	2000	4000
Mx Capacity (in-lb)	24000	48000	96000
My Capacity (in-lb)	12000	24000	48000
Mz Capacity (in-lb)	9000	18000	36000
Fx, Fy Sensitivity (µV/V-lb)	3	1.5	0.75
Fz Sensitivity (µV/V-lb)	0.75	0.38	0.19
Mx Sensitivity (µV/V-in-lb)	0.09	0.08	0.022
My Sensitivity (µV/V-in-lb)	0.13	0.07	0.03
Mz Sensitivity (µV/V-in-lb)	0.19	0.094	0.047
Fx, Fy Natural Frequency (Hz)	280	390	--
Fz Natural Frequency (Hz)	390	410	--

Specifications subject to change without notice.

Technical Drawings

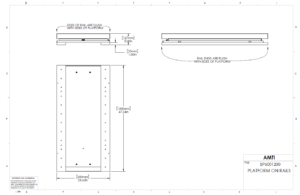

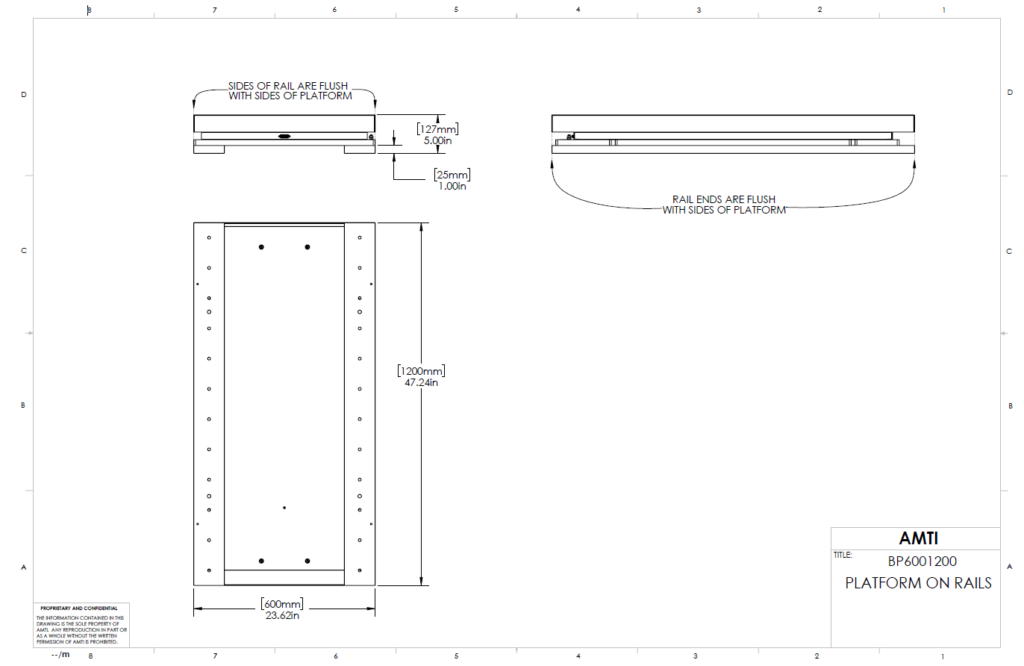

BMS6001200 Platform on Rails
